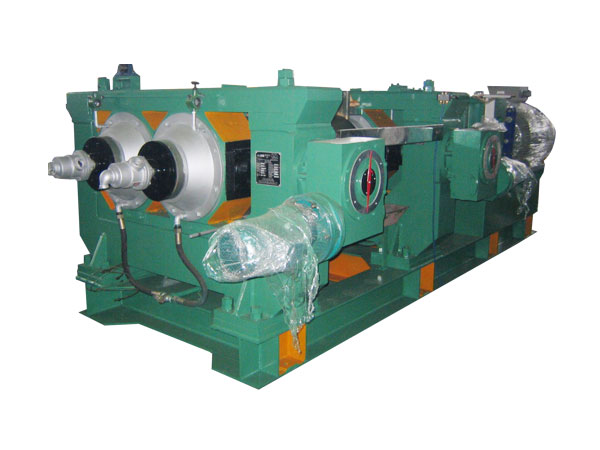

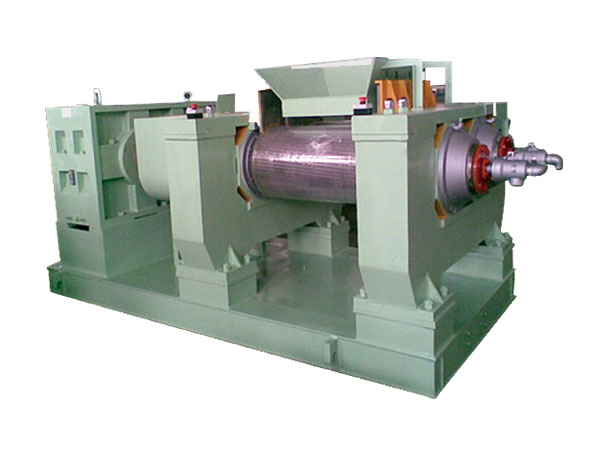

It’s applicable for breaking scrap rubber and virgin rubber, or breaking scrap radial steel tires.
1. The roll is made of chilled cast iron with vanadium and titanium alloys. The roll face is hard and anti-wear （Or choose high grade steel with hard alloy welded on the surface）. The back roll is fluted. The internal cavity of the roll is processed to make temperature well proportioned on the roll surface.
2. The machine is equipped with an overload protection device to prevent the major components from damaged due to overloading.
3. The machine is equipped with an emergency device. When an emergent accident happens, just draw the safety pull-rod, and the machine will stop immediately. It’s safe and reliable.
| 型号 Model | XKP-400双光 Double smooth | XKP-400单沟 Single flute | XKP-400双沟 Double flutes | XKP-560单沟 Single flute | ZKC-560双沟 Double flutes | |
| 辊筒直径(mm) Roll diameter | 400 | 400 | 400 | 560/510 | 560/510 | |
| 辊筒工作长度(mm) Roll working length | 600 | 600 | 600 | 800 | 800 | |
| 前辊线速度(m/min) Front roll linear speed | 17.15 | 17.15 | 17.15 | 25.6 | 25.6 | |
| 辊筒速比 Roll friction ratio | 1:1.38 | 1:1.38 | 1:1.38 | 1:1.428 | 1:1.55 | |
| 破胶量(kg/h) Rubber cracking capacity | ≥28目 70—110 ≥28mesh 70-110 | 3-5目600-800 3-5mesh 600-800 | 3-5目600-800 3-5mesh 600-800 | 3-5目600-800 3-5mesh 600-800 | 3-5目600-800 3-5mesh 600-800 | |
| 电机功率(kw) Motor power | 55 | 55 | 55 | 75 | 90 | |
| 外形尺寸(mm) Overall dimension | 长(L) | 3520 | 3520 | 3520 | 5120 | 5120 |
| 宽(W) | 1710 | 1710 | 1710 | 2300 | 2300 | |
| 高(H) | 1850 | 1850 | 1850 | 2000 | 2000 | |
| 重量(t) Weight | 7.7 | 7.7 | 7.7 | 19 | 19 | |
