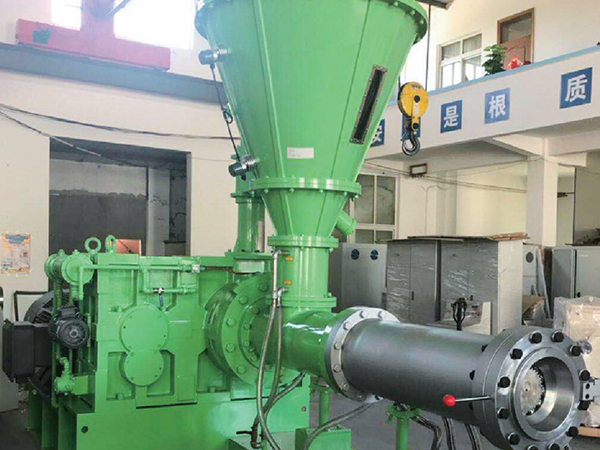

PLANETARY EXTRUDER

Application & Features

It is mainly used for melting, mixing and extruding of plastic polymer.
1. It is composed of a main screw, several planetary screws and a cylinder with spiral teeth on the wall.
2. Good plasticizing effect, no bubbles, no white spots, high output and long service life.
3. High degree of automation, saving manpower and reducing labor intensity.
4. It is unnecessary to dismantle the machine to clean up when changing different colors for a good self-cleaning performance.

Product parameters

型号
Model
WE125 WE150 WE170 WE190 WE220 WE250 WE300 WE355
主电机功率(交流/直流)(kw)
Main motor power(AC/DC)
55 75/110 90/132 160/185 200/250 250/315 315/355 355/400
油加热器功率(kw)
Oil heating power
9x2 12x2 12x2 12x3 12x3 18x2 18x3 18x3
PVC硬片挤出量(kg/h)
Extrusion capacity of PVC rigid sheet
360 500 700 1100 1400 1800 2500 3000
PVC软膜挤出量(kg/h)
Extrusion capacity of PVC soft film
300 450 600 900 1200 1600 2200 2700
